Tugas 4 PBKK - Aplikasi WPF .NET Framework

Posted by : Aulia Ihza H - 0089 Monday, April 5, 2021

1.Persiapan

Menginstall Visual Studio dengan Pilihan .NET Desktop Developer
Atau Visual Studio Code dengan .NET
Membuka link petunjuk 1 yang ada di Menerapkan MVVM Di Windows Presentation Foundation (WPF)
Dan link petunjuk 2 Memakai Entity Framework Di Visual Studio 2010

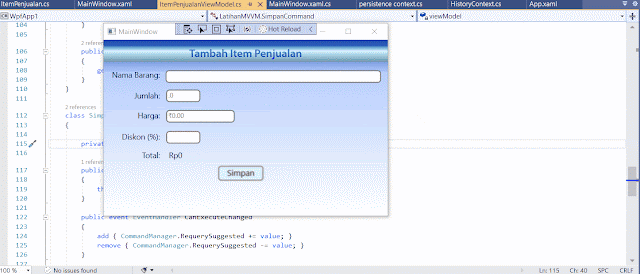

2.Program ItemPenjualan

Setelah mengikuti persiapan tambahan yang ada dilink petunjuk 2, dan mengikuti petunjuk link 1 didapat demo sementara dimana databasenya masih belum bisa terhubung sebagaimana yang tercantum pada demo, walaupun sudah dicoba menggunakan MySQL Server dan MySQL for Visual Studio Code yang dihubungkan melalui MySql Connector versi 8.x:

*Ada update database program sudah berjalan pada point no 3

Dibawah ini merupakan kode sementara yang dapat dirangkum dari 2 petunjuk sebelumnya.

Dapat juga dilihat di : aulkiller/WpfApp1 (github.com)

Isi Kode dari App.config

<?xml version="1.0" encoding="utf-8"?>
<configuration>
  <configSections>
        <!-- For more information on Entity Framework configuration, visit http://go.microsoft.com/fwlink/?LinkID=237468 -->
        <section name="entityFramework"
          type="System.Data.Entity.Internal.ConfigFile.EntityFrameworkSection, EntityFramework, Version=6.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089"
          requirePermission="false"/>
    </configSections>
    <startup>
        <supportedRuntime version="v4.0" sku=".NETFramework,Version=v4.7.2"/>
    </startup>
    <entityFramework>
      <providers>
        <provider invariantName="MySql.Data.MySqlClient" type="MySql.Data.MySqlClient.MySqlProviderServices, MySql.Data.Entity.EF6"/>
        <provider invariantName="System.Data.SqlClient" type="System.Data.Entity.SqlServer.SqlProviderServices, EntityFramework.SqlServer"/>
      </providers>
    </entityFramework>
    <connectionStrings>
      <add name="LatihanContext" connectionString="server=localhost; database=latihan; uid=root; password=" providerName="MySql.Data.MySqlClient"/>
    </connectionStrings>
</configuration>

Isi Kode dari HistoryContext.cs

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Data.Entity.Migrations.History;
using System.Data.Common;
using System.Data.Entity;

namespace LatihanMVVM
{
    public class MyHistoryContext : HistoryContext
    {
        public MyHistoryContext(DbConnection dbConnection, string defaultSchema)
            : base(dbConnection, defaultSchema)
        {
        }

        protected override void OnModelCreating(System.Data.Entity.DbModelBuilder modelBuilder)
        {
            base.OnModelCreating(modelBuilder);
            modelBuilder.Entity<HistoryRow>().Property(p => p.MigrationId).HasMaxLength(100).IsRequired();
            modelBuilder.Entity<HistoryRow>().Property(p => p.ContextKey).HasMaxLength(200).IsRequired();
        }
    }

    public class ModelConfiguration : DbConfiguration
    {
        public ModelConfiguration()
        {
            SetHistoryContext("MySql.Data.MySqlClient", (c, s) => new MyHistoryContext(c, s));
        }
    }
}

Isi Kode dari ItemPenjualan.cs

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.ComponentModel.DataAnnotations;
using System.ComponentModel.DataAnnotations.Schema;

namespace LatihanMVVM
{
    public class ItemPenjualan
    {
        public ItemPenjualan()
        {
            DiskonPersen = 0;
        }

        [DatabaseGenerated(DatabaseGeneratedOption.Identity)]
        public long Id { get; set; }

        [StringLength(50)]
        public string NamaBarang { get; set; }

        public int Jumlah { get; set; }

        public decimal Harga { get; set; }

        public decimal DiskonPersen { get; set; }

        public decimal Total()
        {
            decimal total = Jumlah * Harga;
            return total - (DiskonPersen / 100 * total);
        }
    }
}

Isi Kode dari ItemPenjualanViewModel.cs

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.ComponentModel;
using System.Windows.Input;
using System.Windows;

namespace LatihanMVVM
{
    class ItemPenjualanViewModel : INotifyPropertyChanged
    {
        public event PropertyChangedEventHandler PropertyChanged;

        private ItemPenjualan model;
        private ICommand simpanCommand;

        public ItemPenjualanViewModel(ItemPenjualan itemPenjualan = null)
        {
            this.model = itemPenjualan ?? new ItemPenjualan();
        }

        public ICommand SimpanCommand
        {
            get
            {
                if (this.simpanCommand == null)
                {
                    this.simpanCommand = new SimpanCommand(this);
                }
                return this.simpanCommand;
            }
        }

        public string NamaBarang
        {
            get { return model.NamaBarang; }
            set
            {
                if (value != model.NamaBarang)
                {
                    model.NamaBarang = value;
                    PropertyChanged(this, new PropertyChangedEventArgs("NamaBarang"));
                }
            }
        }

        public int Jumlah
        {
            get { return model.Jumlah; }
            set
            {
                if (value != model.Jumlah)
                {
                    model.Jumlah = value;
                    PropertyChanged(this, new PropertyChangedEventArgs("Jumlah"));
                    PropertyChanged(this, new PropertyChangedEventArgs("Total"));
                }
            }
        }

        public decimal Harga
        {
            get { return model.Harga; }
            set
            {
                if (value != model.Harga)
                {
                    model.Harga = value;
                    PropertyChanged(this, new PropertyChangedEventArgs("Harga"));
                    PropertyChanged(this, new PropertyChangedEventArgs("Total"));
                }
            }
        }

        public decimal DiskonPersen
        {
            get { return model.DiskonPersen; }
            set
            {
                if (value != model.DiskonPersen)
                {
                    model.DiskonPersen = value;
                    PropertyChanged(this, new PropertyChangedEventArgs("DiskonPersen"));
                    PropertyChanged(this, new PropertyChangedEventArgs("Total"));
                }
            }
        }

        public string Total
        {
            get
            {
                decimal? total = model.Total();
                if (!total.HasValue)
                {
                    return "-";
                }
                else
                {
                    return total.Value.ToString("C");
                }
            }
        }

        public ItemPenjualan Model
        {
            get { return this.model; }
        }
    }

    class SimpanCommand : ICommand
    {

        private ItemPenjualanViewModel viewModel;

        public SimpanCommand(ItemPenjualanViewModel viewModel)
        {
            this.viewModel = viewModel;
        }

        public event EventHandler CanExecuteChanged
        {
            add { CommandManager.RequerySuggested += value; }
            remove { CommandManager.RequerySuggested -= value; }
        }

        public bool CanExecute(object parameter)
        {
            return viewModel.Model.Total() > 0;
        }

        public void Execute(object parameter)
        {
            using (var db = new LatihanContext())
            {
                db.Database.Log = Console.Write;
                db.DaftarItemPenjualan.Add(viewModel.Model);
                db.SaveChanges();
                MessageBox.Show("Data berhasil disimpan ke database");
            }
        }

    }


}

Isi Kode dari UI(MainWindow.xaml)

<Window x:Class="LatihanMVVM.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        Title="MainWindow" Height="356" Width="528">

    <Window.Resources>
        <Style TargetType="TextBlock">
            <Setter Property="FontSize" Value="20" />
            <Setter Property="FontFamily" Value="Myriad Pro" />
            <Setter Property="FontWeight" Value="SemiBold" />
            <Setter Property="Background">
                <Setter.Value>
                    <LinearGradientBrush EndPoint="0.5,1" StartPoint="0.5,0">
                        <GradientStop Color="#FF508FC4" Offset="0" />
                        <GradientStop Color="#FF6F94AD" Offset="1" />
                        <GradientStop Color="#FFC7F3FF" Offset="0.302" />
                    </LinearGradientBrush>
                </Setter.Value>
            </Setter>
            <Setter Property="Foreground">
                <Setter.Value>
                    <LinearGradientBrush EndPoint="0.5,1" StartPoint="0.5,0">
                        <GradientStop Color="#FF5252CE" Offset="0" />
                        <GradientStop Color="#FF0000DB" Offset="0.953" />
                        <GradientStop Color="#FF6363CB" Offset="0.337" />
                    </LinearGradientBrush>
                </Setter.Value>
            </Setter>
        </Style>

        <Style TargetType="Label">
            <Setter Property="FontSize" Value="14" />
        </Style>

        <Style TargetType="TextBox">
            <Setter Property="Language" Value="in-IN" />
            <Setter Property="Template">
                <Setter.Value>
                    <ControlTemplate>
                        <Border x:Name="customBorder" Background="{TemplateBinding Background}" CornerRadius="5" BorderThickness="2" BorderBrush="Gray">
                            <ScrollViewer x:Name="PART_ContentHost"/>
                        </Border>
                        <ControlTemplate.Triggers>
                            <Trigger Property="IsKeyboardFocused" Value="True">
                                <Setter TargetName="customBorder" Property="Effect">
                                    <Setter.Value>
                                        <DropShadowEffect BlurRadius="10" ShadowDepth="0" Color="#578EC9"/>
                                    </Setter.Value>
                                </Setter>
                            </Trigger>
                            <Trigger Property="IsKeyboardFocused" Value="False">
                                <Setter Property="Foreground" Value="Gray" />
                            </Trigger>
                        </ControlTemplate.Triggers>
                    </ControlTemplate>
                </Setter.Value>
            </Setter>
            <Setter Property="Validation.ErrorTemplate">
                <Setter.Value>
                    <ControlTemplate>
                        <StackPanel Orientation="Horizontal">
                            <AdornedElementPlaceholder />
                            <TextBlock Text="Perlu diperbaiki!" Padding="3" Foreground="Red" />
                        </StackPanel>
                    </ControlTemplate>
                </Setter.Value>
            </Setter>
        </Style>

        <Style TargetType="Button">
            <Setter Property="Background" Value="#DEF2FC" />
            <Setter Property="Foreground" Value="Black" />
            <Setter Property="FontSize" Value="15"/>
            <Setter Property="Effect">
                <Setter.Value>
                    <DropShadowEffect BlurRadius="10" ShadowDepth="0" Color="#578EC9"/>
                </Setter.Value>
            </Setter>
            <Setter Property="Template">
                <Setter.Value>
                    <ControlTemplate TargetType="{x:Type Button}">
                        <Border x:Name="customBorder" Background="{TemplateBinding Background}" CornerRadius="4" BorderThickness="2" BorderBrush="Gray">
                            <ContentPresenter Content="{TemplateBinding Content}" HorizontalAlignment="Center" />
                        </Border>
                        <ControlTemplate.Triggers>
                            <Trigger Property="IsMouseOver" Value="True">
                                <Setter Property="Background" Value="#2394CC" />
                                <Setter Property="Foreground" Value="White" />
                            </Trigger>
                            <Trigger Property="IsPressed" Value="True">
                                <Setter Property="Effect" Value="{x:Null}" />
                            </Trigger>
                            <Trigger Property="IsEnabled" Value="False">
                                <Setter Property="Effect">
                                    <Setter.Value>
                                        <BlurEffect Radius="3"  />
                                    </Setter.Value>
                                </Setter>
                            </Trigger>
                        </ControlTemplate.Triggers>
                    </ControlTemplate>
                </Setter.Value>
            </Setter>
        </Style>
    </Window.Resources>

    <Grid>
        <Label Content="Nama Barang:" Height="29" HorizontalAlignment="Left" Margin="0,49,0,0" Name="label2" VerticalAlignment="Top" HorizontalContentAlignment="Right" Width="107" />
        <TextBox Height="23" HorizontalAlignment="Stretch" Margin="112,55,12,0" Name="textBox1" VerticalAlignment="Top" Text="{Binding Path=NamaBarang}"/>
        <Label Content="Jumlah:" Height="27" HorizontalAlignment="Left" Margin="1,86,0,0" Name="label3" VerticalAlignment="Top" Width="106" HorizontalContentAlignment="Right" />
        <TextBox Height="23" HorizontalAlignment="Left" Margin="113,90,0,0" Name="textBox2" VerticalAlignment="Top" Width="62" Text="{Binding Path=Jumlah, StringFormat={}{0:#.0}}"/>
        <Label Content="Harga:" Height="28" HorizontalAlignment="Left" Margin="12,122,0,0" Name="label4" VerticalAlignment="Top" HorizontalContentAlignment="Right" Width="95" />
        <TextBox Height="23" HorizontalAlignment="Left" Margin="113,127,0,0" Name="textBox3" VerticalAlignment="Top" Width="124" Text="{Binding Path=Harga, StringFormat={}{0:C}}"/>
        <Button Content="Simpan" Height="27" HorizontalAlignment="Left" Margin="207,228,0,0" Name="button1" VerticalAlignment="Top" Width="82" Command="{Binding SimpanCommand}"/>
        <Label Content="Diskon (%):" Height="33" HorizontalAlignment="Left" Margin="12,161,0,0" Name="label5" VerticalAlignment="Top" HorizontalContentAlignment="Right" Width="95" />
        <TextBox Height="23" HorizontalAlignment="Left" Margin="113,165,0,0" Name="textBox4" VerticalAlignment="Top" Width="62" Text="{Binding Path=DiskonPersen, StringFormat={}{0:#.#}}"/>
        <Label Content="Total:" Height="33" HorizontalAlignment="Left" Margin="12,194,0,0" Name="label6" VerticalAlignment="Top" HorizontalContentAlignment="Right" Width="95" />
        <Label Content="{Binding Path=Total}" Height="28" HorizontalAlignment="Left" Margin="113,194,0,0" Name="label7" VerticalAlignment="Top" Width="402"/>
        <TextBlock Height="28" HorizontalAlignment="Stretch" Name="textBlock1" Text="Tambah Item Penjualan" VerticalAlignment="Top" TextAlignment="Center" Margin="0,12,0,0" />

        <Grid.Background>
            <LinearGradientBrush EndPoint="0.5,1" StartPoint="0.5,0">
                <GradientStop Color="#FFB7CEFF" Offset="0.192" />
                <GradientStop Color="White" Offset="1" />
                <GradientStop Color="#FF1648AD" Offset="0" />
            </LinearGradientBrush>
        </Grid.Background>

    </Grid>
</Window>

Isi Kode dari persistence context.cs

using System.Data.Entity;

namespace LatihanMVVM
{
    class LatihanContext : DbContext
    {
        public DbSet<ItemPenjualan> DaftarItemPenjualan { get; set; }
    }
}

3.Koneksi ke Database(Update)

Pertama-pertama persiapkan aplikasi dari MySQL Installer berupa MySQL Server,MySQL Connector for NET, dan MySQL for Visual Studio Code yang paling baru. Setup User,Password, dan Port pada MySQL Server melalui reconfigure (Disini menggunakan MySQL Server karena MySQL XAMPP/MariaDB inkompatibel dengan EntityFramework terbaru).

Mengikuti MySQL :: MySQL Connector/NET Developer Guide :: 7.1 Entity Framework 6 Support lakukan perubahan pada App.config pada line provider dan database connection,sehingga menjadi seperti ini(untuk User,Password, dan Port disesuaikan dengan MySQLServer yang terinstall pada komputer masing-masing) :

<?xml version="1.0" encoding="utf-8"?>
<configuration>
  <configSections>
        <!-- For more information on Entity Framework configuration, visit http://go.microsoft.com/fwlink/?LinkID=237468 -->
        <section name="entityFramework"
          type="System.Data.Entity.Internal.ConfigFile.EntityFrameworkSection, EntityFramework, Version=6.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089"
          requirePermission="false"/>
    </configSections>
    <startup>
        <supportedRuntime version="v4.0" sku=".NETFramework,Version=v4.7.2"/>
    </startup>
    <connectionStrings>
      <add name="LatihanContext" providerName="MySql.Data.MySqlClient"
          connectionString="server=localhost;port=3307;database=latihan;uid=root;password=root"/>
    </connectionStrings>
    <entityFramework>
      <defaultConnectionFactory type="System.Data.Entity.Infrastructure.SqlConnectionFactory, EntityFramework"/>
      <providers>
        <provider invariantName="MySql.Data.MySqlClient"
            type="MySql.Data.MySqlClient.MySqlProviderServices, MySql.Data.EntityFramework"/>
        <provider invariantName="System.Data.SqlClient"
            type="System.Data.Entity.SqlServer.SqlProviderServices, EntityFramework.SqlServer"/>
      </providers>
    </entityFramework>
</configuration>

Dan juga update pada context menjadi seperti ini:

using MySql.Data.EntityFramework;

using System.Data.Entity;

namespace LatihanMVVM
{
    [DbConfigurationType(typeof(MySqlEFConfiguration))]
    class LatihanContext : DbContext
    {
        public DbSet<ItemPenjualan> DaftarItemPenjualan { get; set; }
    }
}

Lalu lakukan Enable-Migration dan Add-Migration dengan Nama Bebas pada Packet Manager Console :
